Product Description

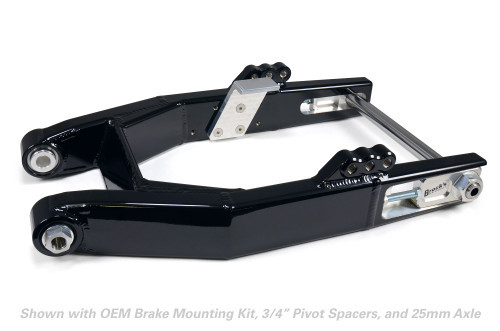

- Handcrafted 6061-T6 aluminum extended swingarm
- Proprietary custom extrusion made exclusively for Brock's Performance
- Adjustable wheelbase, from stock location up to 3 inches over
- 3-position shock mounts allow flexibility in ride height (stock, -1”, -2”)
- Designed for use in high-power, high-torque applications
- Includes centerless ground 4130 Chromoly axle
(choose from 3/4”, 25mm, 1”, or 28mm axles) - Reversible billet aluminum axle adjusters for easy wheel adjustments
- Select from one of two caliper mounting options:
- Undermount - For Aftermarket Calipers
- OEM - For using the OEM Dyna Caliper and Mount
(select the correct axle size for your caliper mount)
- PTFE® lined spherical bearings from Worldwide Bearings preinstalled
- Select spacer size for the model year Dyna:
- 11/16” - Model Years 2000-2005
- 3/4” - Model Years 2006-2017
- Interior swingarm width measures 10 5/8” at the axle
- The total weight of swingarm, hardware, and axle is 14.78 lb. (6.70 kg)
(see the 'Technical' tab for details) - Designed, machined, and assembled in the USA
- Black powder coated finish
- See 'Technical' tab for installation information
- Click here to view installation information
- Click here to view pivot bolt stack-up engineered drawing
- Overall hub width is critical for proper operation/handling, see 'Technical' tab for important information regarding installation
What do you get when you combine 25 years of sportbike drag racing and innovation with a V-Twin industry cry for a swingarm that can handle the ever-increasing demands of ultra-powerful Dyna's? Introducing the Performance Dyna Swingarm™, by Brock's Performance. Leaning heavily on technology proven in the ‘stupid fast’ turbocharged sportbike area, our tubing, bracing, billet aluminum ends and Chromoly axles routinely control 750 hp/350 ft-lb no wheelie bar missiles in 6 second/220MPH action.
Adapting this winning combination for smooth operation and long street life for your Dyna, we installed replaceable PTFE® lined spherical bearings from Worldwide Bearings at the pivot loops. Adding a bit of flexibility to the stance and chassis tunability in the rear, billet 3-position shock mounts (1/2-13 thread) are standard allowing for stock height, -1”, and -2” mounting positions. Speaking of flexibility, check out the brake mounting options to run the OEM caliper and mount or your favorite aftermarket caliper.
Don't forget the extra 3 inches in length can be worth as much as 3 tenths improvement in the 1/4 mile. The bottom line, weighing in at a little over 1/2 the weight of the OEM swingarm and built to handle as much power as you can throw at it, moving/bent axles can now be a thing of the past, and you can look great and go faster too.
Note: Performance Dyna Swingarms are not designed for off-road use.
American V-Twin Fitment Statement:
Although all attempts have been made to handcraft a product which will fit a wide variety of machines for a particular make/model/year, due to idiosyncrasies between particular years, available options, accessories, etc…, fitment cannot be 100% guaranteed. If upon assembly, fitment issues are discovered which are beyond the installer's ability or willingness to correct, then please feel free to contact our customer service department, alert Brock's Performance of the fitment issue for your particular make/model, and obtain an RMA (Return Material Authorization). Brock's Performance will accept unmodified swingarms, in 100% resalable condition for a full refund.
Please note, refunds are issued after product inspection at Brock's Performance, and the customer is responsible for any/all shipping charges.
Attention: When spacing Dyna rear wheel, the overall width including spacers, brake hanger, etc. Must be: 10.625 in +.020in/-.000in / (269.88mm +.50mm/-.00mm)
Overall hub width is critical for proper operation/handling, product longevity, and rider safety. Brock’s Performance will not warranty any damaged swingarm found not to be in compliance with these spacing guidelines.
Performance Dyna Swingarm Weight:
- Swingarm w/ Bearings: 10.90 lb. (4.94 kg)
- Axle w/ Nuts & Blocks:
- 3/4” - 2.85 lb. (1.29 kg)
- 25mm - 3.15 lb. (1.43 kg)
- 1” - 3.20 lb. (1.45 kg)
- 28mm - 3.40 lb. (1.54 kg)
- Pivot Bushings:
- 5/8” - 0.40 lb. (0.18 kg)
- 3/4” - 0.43 lb. (0.20 kg)
- Caliper Mounting Hardware:
- OEM Mount - 0.60 lb. (0.27 kg)
- Undermount Kit - 0.80 lb. (0.36 kg)
Total Performance Dyna Swingarm Weight with OEM Caliper Mount, 3/4” Axle, and 3/4” Pivot Bushings: 14.78 lb. (6.70 kg)
Installation Information:
- Not a 100% bolt-on application
- Performance swingarms are wider than OEM to accommodate wider rear tires, an offset sprocket/pulley may be required and/or modification of the rear wheel carrier
(for BST wheels low profile sprocket carriers are available) - Fabrication of wheel and/or shocks spacers required
- For modified bikes, Brock's Performance recommends the 3/4” pivot shaft which may require modification of the transmission case
- When using the 3/4" axle in high power applications, we suggest a wheel configuration that utilizes a double row bearing (or outboard bearing) on the sprocket/pulley side
