Product Description
Position: Right
Bolt-Center: 108mm
Caliper Body: Monoblock
Piston DIA: 34mm
Piston Quantity: 4
Piston Material: Aluminum
Disc Height: 32-34mm
Caliper Material: Cast Aluminum
Finish: Hard Anodized
Weight (w/o pads): 1.76 lb. (800g)
Brake Pads: Included (HH Rated Sintered)
Offset: 22.5mm
Brake Fluid: DOT 4
Note: Single Caliper (banjo bolt and washers not included)
Brembo P/N: 20A39720
Click here to view Caliper Dimensions Reference Guide

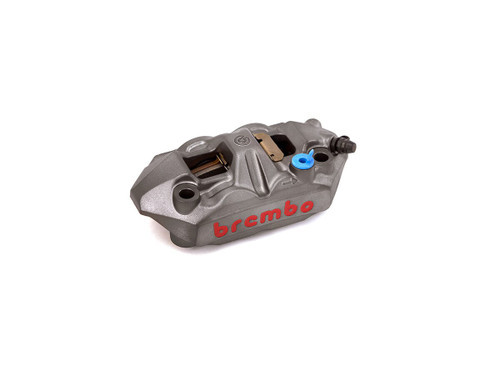

This monoblock caliper, obtained from a single piece of cast aluminium which employs the most advanced casting and machining technologies in order to obtain a solid caliper body which is ultra light and has excellent stiffness and precision operating values. The hydraulics were given particular attention, as was the shape of the caliper body, both of which were the focus of technical fine-tuning. The caliper body, which houses four 34 mm diameter pistons, is characterized by significant stiffness values which are obtained thanks to the characteristic triple bridge shape.
With these cast monoblock calipers Brembo makes the technology which has been successfully employed in MotoGP available to all enthusiasts. This is technology which allows the caliper body to be obtained from a single piece of cast aluminium, thereby guaranteeing optimum stiffness.
The Brembo logo is embossed and hand painted in classic Brembo Red. The product includes sintered brake pads which represent the absolute best quality available on the market.
